What Is the Drip Edge On a Roof?

A drip edge is a metal component installed along the outside edges of a roof to divert water away from the fascia and into the gutters. Like other roof flashing components, drip edges are made from thin, metallic, waterproofed materials.

This humble strip is your roof’s first line of defense against water intrusion and all the structural damage that comes with it. Understanding what the drip edge on a roof is and how it is used is essential to making an informed decision on your next purchase or repair.

How Does a Drip Edge Protect Against Water Damage?

As any homeowner who has weathered a storm or two knows, water can be incredibly pervasive and stealthy in its effects on your roof (and foundation). Wind-driven rain, fascia damage, and even gently accumulated water droplets can all shorten your roof’s lifespan and incur greater repair costs.

Thankfully, drip edges can prevent several types of water damage while adding another layer of protection against unwanted water intrusion.

Drip Edges and Surface Tension

Picture a small droplet of water clinging to your finger, sliding across it as it resists the force of gravity. In the same way, the cohesion and surface tension forces acting on water that has accumulated on your roof can cause it to stick to and work its way up the roofing materials.

Drip edges do not nullify these forces, but rather, take advantage of them with their specialized design, directing water into your gutters.[1]

Counteracting Wind-Blown Rain

When the wind blows at just the right angle and with enough force, it can push water against the force of gravity and direct it towards the roof’s edge. The NRCA notes that drip edges hanging significantly off the roof edge with two to four inches of lower flange are better suited to “compete with the wind” in this scenario and keep your roof protected during storms.[2]

Protecting the Fascia and Soffit

Without a drip edge, water can drip straight down the fascia boards and trickle into the soffit cavities. This causes wood rot, mold growth, and significant structural deterioration over time.

Teaming Up With Underlayment for Added Protection

The 2024 International Residential Code (IRC) specifies that underlayment should be installed over drip edge flanges at eaves and under drip edge flanges at rakes.[3] Layering materials creates multiple barriers against water infiltration.

What Does a Drip Edge Look Like?

Drip edges are simple metal strips. You may be able to spy a drip edge on a roof, depending on your viewing angle, the type of drip edge, and whether or not you can see any eaves. Depending on the configuration, the strip may be bent at a 90-degree angle on one side, or it may resemble the letter T.

L-Shaped Drip Edges

This simple configuration mirrors the uppercase letter L. The National Roofing Contractors Association (NRCA) recommends this basic design for a wide variety of applications.[4]

T-Shaped Drip Edges

To divert water further away from the structure, a T-shaped drip edge may be the best option. These are like L-shaped drip edges, but with an added projection that adds more clearance between the flow of water and the roof.

Drip Edge Construction Materials

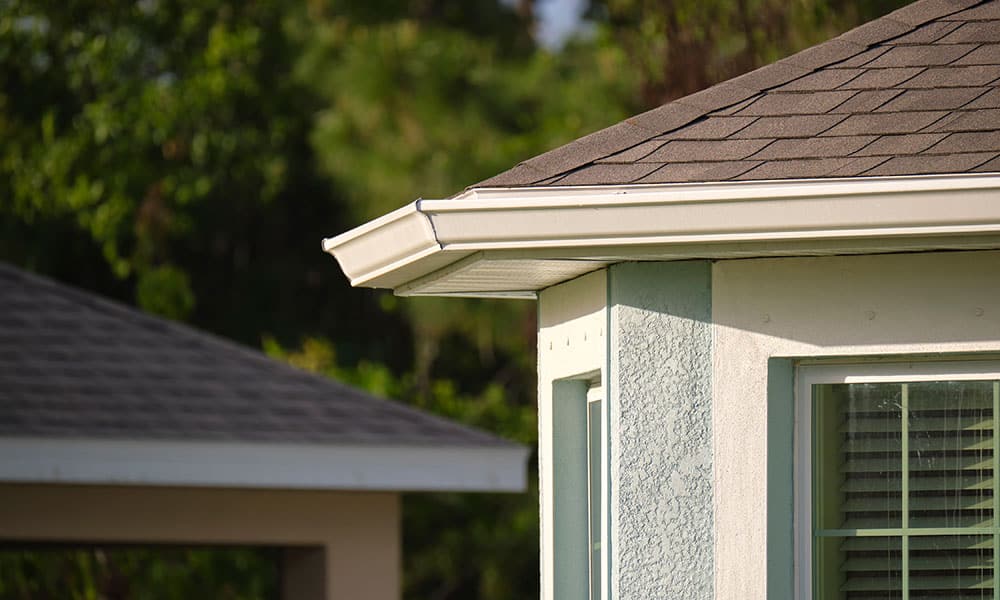

Drip edges are made of various metallic materials, including aluminum, galvanized steel, and copper. Each material offers unique benefits and drawbacks.

For example, aluminum offers superior corrosion resistance and is lighter but weaker than galvanized steel. Copper is usually considered the premium-grade choice, offering the best longevity and a more distinguished look.

Drip Edge Specs and Code Requirements

The IRC requires drip edges to be provided at the eaves and rake edges of shingle roofs. Additional requirements laid out in Section R905.2.8.5 include the following:[5]

• Minimum 2-inch flange extension onto the roof surface
• Maximum 12-inch fastener spacing
• Adjoining segments of drip edge shall not overlap by less than two inches
• Drip edges shall not extend less than 1/4 inch below the roof sheathing
• Underlayment shall be installed over the drip edge along eaves and under the drip edge along rake edges

Roof edges typically measure between two and five inches in overhang length. Standard drip edges are available in 10.5-foot sections, though other lengths are also available. Most building codes across North America now require drip edge installation. Whether or not it is required for a given structure depends on the type of roof system.

NRCA Recommendations

The NRCA recommends drip edges at all eaves and rakes for asphalt shingle roofing systems. They suggest using at least 26-gauge galvanized steel or 0.032-inch-thick aluminum for best results.[6]

Don’t Underestimate A Properly Installed Drip Edge

It may not be the most robust or complicated component of a roof, but a well-maintained drip edge can still save you thousands of dollars in repairs and replacements. Whether you’re installing a new roof or upgrading an existing system, drip edge installation is a must-have for optimal home durability.
